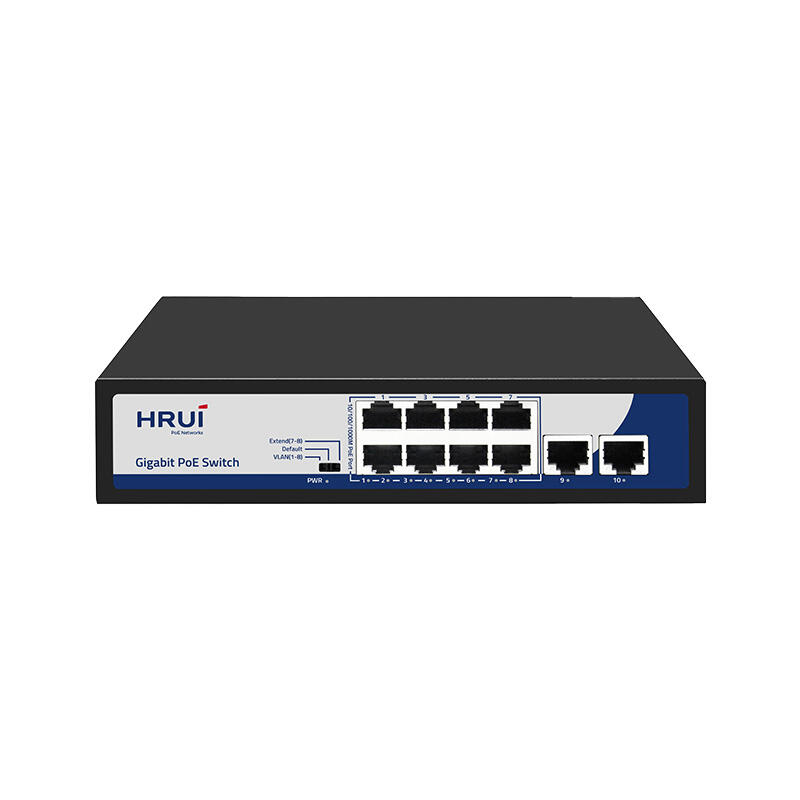

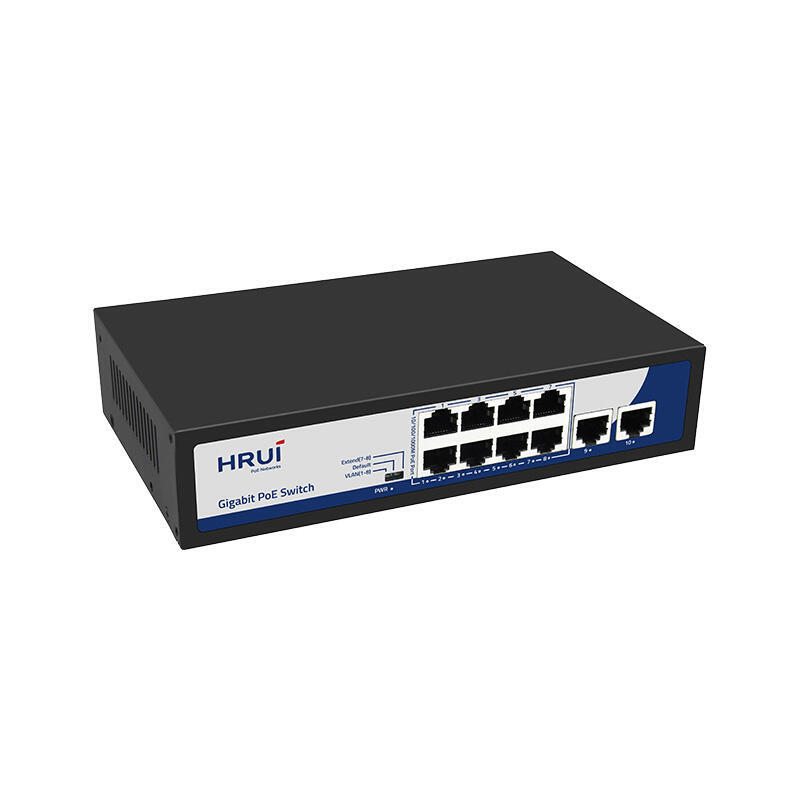

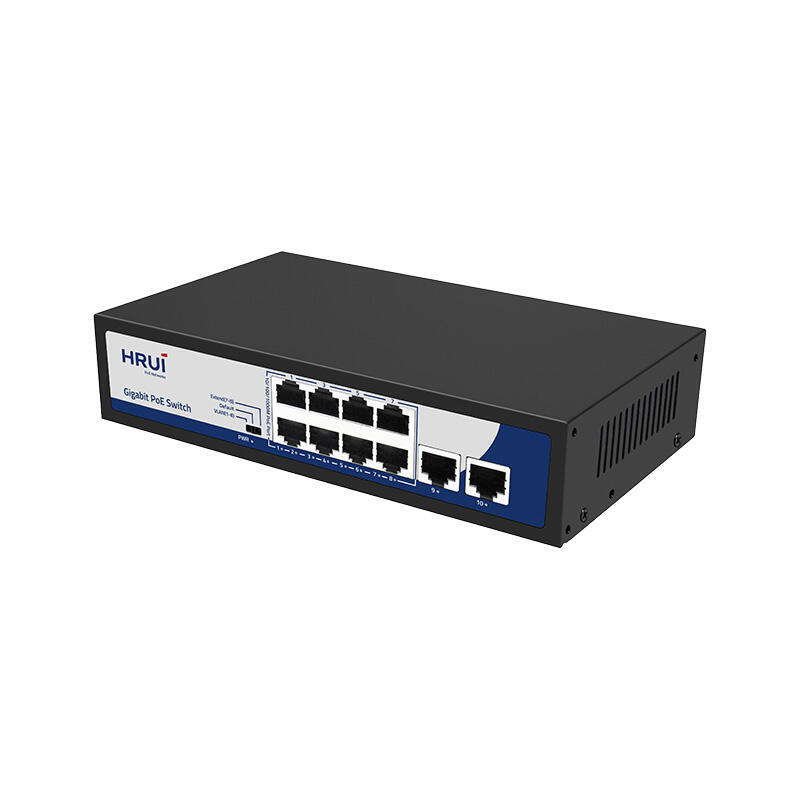

سوئیچ PoE گیگ اچ ار یو ای HRUI HR901-AFG-82N

Specification

I/O Interface

Power

AC 100-240V 50/60Hz

Ethernet

8 Port 10/100/1000M PoE

2 Port 1000M RJ45 Uplink

Performance

Switching Capacity

20Gbps

Throughput

14.88Mpps

Packet Buffer

1.5Mbit

MAC Address

2K

Jumbo Frame

9216Kbytes

Transfer Mode

Store and forward

MTBF

100000 hour

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af (15.4W)

IEEE802.3at (30W)

Industry Standard

EMI:  FCC Part 15 CISPR (EN55032) class A

EMS:  EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Network Medium

10Base-T:  Cat3,  4,  5 or above UTP(≤100m)

100Base-TX :  Cat5 or above UTP(≤100m)

1000Base-TX:  Cat5 or above UTP(≤100m)

Protection

Security Certificae

CE,  FCC,  RoHS

Environment

Working Environment

Working Temperature: -10~50°C

Storage Temperature: -40~85°C

Working Humidity : 10%~90%, non-condensing

Storage Temperature: 5%~90%, non-condensing

Working Height: Maximum10, 000 feet

Storage heigh: Maximum 10, 000 feet

Indication

LED Indicators

PWR(power supply), 1-10 Green(Link&Data)

Mechanical

Structure Size

Product Dimension (L*W*H):  220*161*36.5mmm

Package Dimension (L*W*H):  303*190*60mm

N.W: 0.9kg

G.W: 1.2kg

Packing Info

Carton MEAS: 620*320*402mm

Packing Qty: 20 units

Packing Weight: 25KG

Power Voltage

Power Input Voltage : AC 100-240 V

Power supply: 52V2.3A

Package List

Switch 1 pcs,  Power cord 1 pcs,  User manual 1 pc,  Certification 1 pc
